KITS ARE DEFINED AS A COMBINATION OF
TOOL HOLDERS, INSTRUMENTATION, AND PIN TOOLS

HIGH-TEMPERATURE

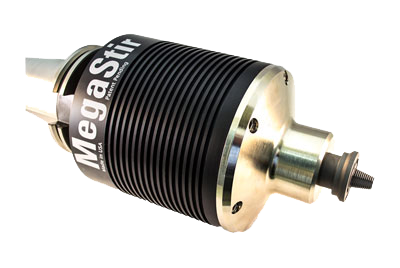

Friction Stir Welding Liquid Cooled Tool Holder
LIQUID COOLED TOOL HOLDER

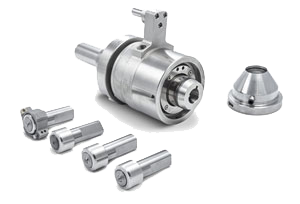

Friction Stir Welding Liquid Cooled Tool Holder with Gas Shielding
W/GAS SHIELDING

Open or closed Shroud

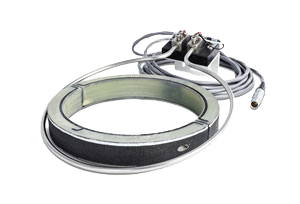

Friction Stir Welding Telemetry
TELEMETRY

Tempratured or/and Forced

LOW-TEMPERATURE

Friction Stir Welding Tool Holder 1

INSTRUMENTED

The Instrumented tool holder is an all-in-one tool holder and telemetry system offering the capability to use FSW on standard milling or routing machines. The system allows the wireless data acquisition of tool temperature, z-axis load, and tool torque for maximum control for the friction stir welding process. The system can also be set up with analog outputs for integrated machine control using force or temperature control algorithms.

Friction Stir Welding Tool Holder 3

MECHANICAL

The Mechanical tool holder is an all-in-one tool offering the capability to use FSW on standard milling or routing machines. The system is designed to allow the operator to program plunge depth to set applied forge force during weld traverse during the friction stir welding process.

MEGASTIR OFFERS TOOLS AND INTELLIGENT TOOL HOLDERS
THAT PROVIDE FULL FUNCTION FRICTION STIR WELDING TECHNOLOGY.

REQUEST MORE INFORMATION
