Friction Stir Welding vs. Traditional Welding

Invented in 1991 by Wayne Thomas at TWI (The Welding Institute), Friction Stir Welding was initially regarded as an experimental process with few practical applications, if any. Over time, however, it soon became clear that FSW, which plasticizes material rather than melting it, not only rivaled but greatly improved upon traditional fusion welding techniques. The result is a technology that revolutionizes fabrication and offers a more efficient way to perform a wide range of industrial welding applications.

Friction Stir Welding vs. Traditional Welding

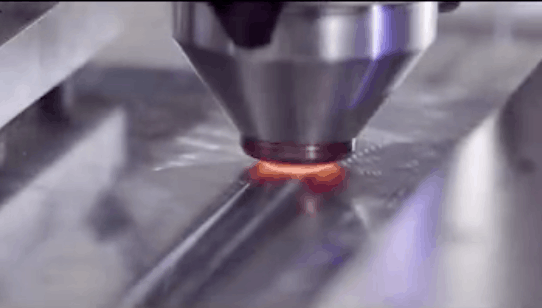

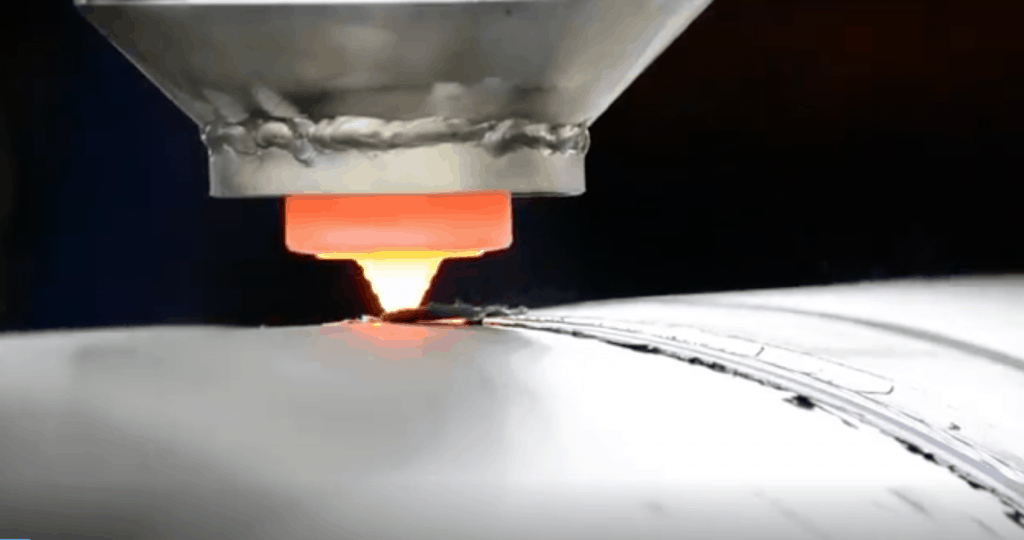

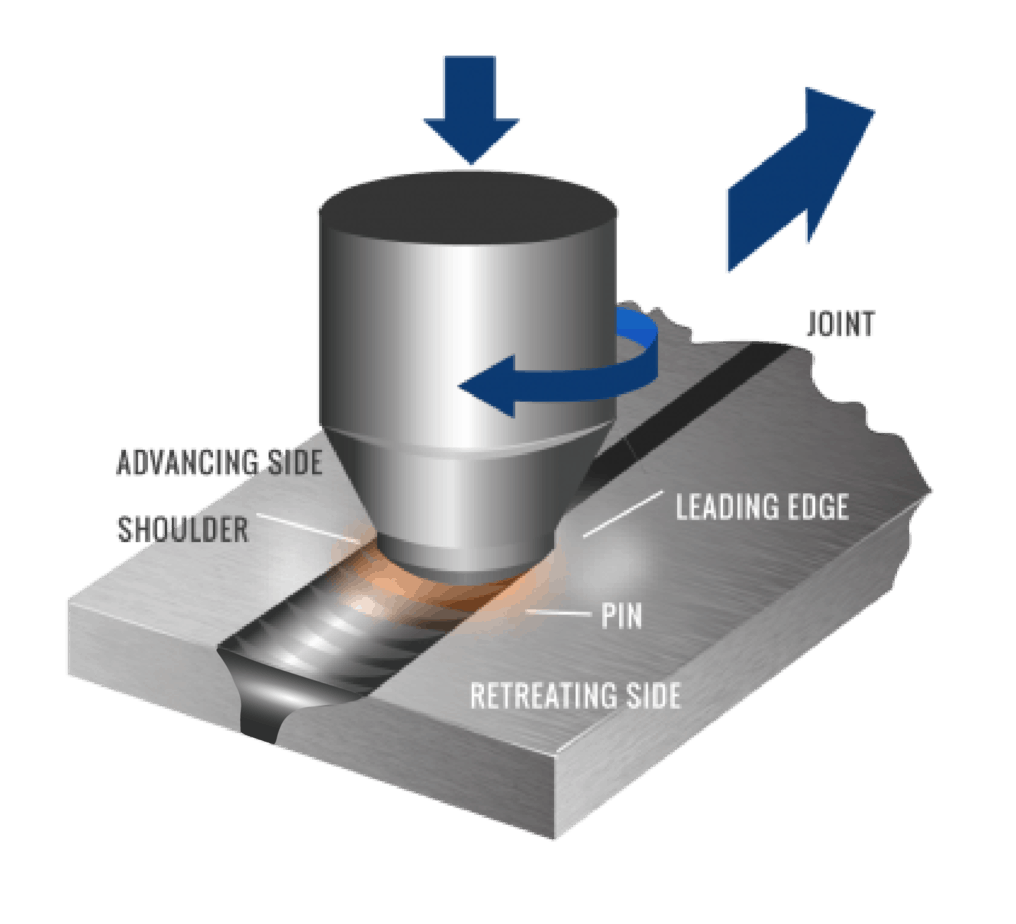

In Friction Stir Welding, a cylindrical shouldered tool with a profiled pin is rotated and plunged into the joint area between two pieces of sheet or plate material. The frictional heat between the wear-resistant welding tool and the workpieces causes the latter to soften without reaching the materials’ melting point, allowing the tool to traverse along the weld line without shielding gas or filler wire. The plasticized material, transferred to the trailing edge of the tool pin, is forged through contact with the tool shoulder and pin profile. On cooling, a solid phase bond is created between the workpieces.

Friction Stir Welding

Friction Stir Welding vs. Traditional Welding
Friction Stir Welding vs. Traditional Welding

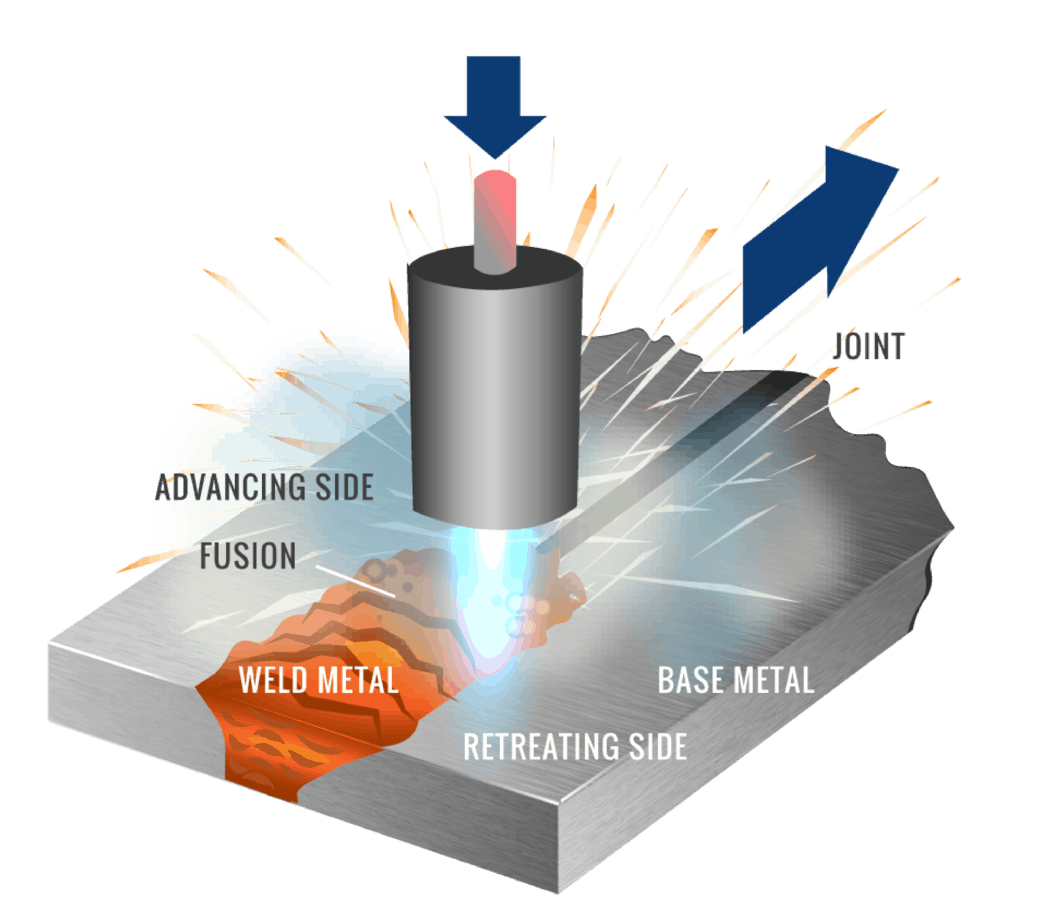

Traditional Fusion Welding

Friction Stir Welding vs. Traditional Welding

Benefits of Friction Stir Welding

No need for filler wire or shielding gas
Expanded types of welds
Improved safety due to the absence of toxic fumes and molten splatter
Lower setup costs and less training
Great weld appearance and minimal under/over matching
Operate in all positions and orientations
Reduced distortion compared to conventional welding
Welds with similar mechanical and physical properties as the base metal
Low environmental impact
No cooldown period boosts efficiency and reduces costs

Weldable Alloys

Friction Stir Welding vs. Traditional Welding
STEEL
  • High-strength
  • Pipeline (x65, x80, x100)
  • Stainless (austenitic, duplex)
  • Automotive (AHSS)
  • Invar
Friction Stir Welding vs. Traditional Welding
COPPER
  • Nickel, zinc, silicon and tin-alloyed materials
Friction Stir Welding vs. Traditional Welding
NICKEL
  • 200
  • 600
  • 625
  • 718
Friction Stir Welding vs. Traditional Welding
ALUMINUM
  • 1,000
  • 2,000
  • 3,000
  • 5,000
  • 6,000
  • 7,000
  • Metal matrix composites
Friction Stir Welding vs. Traditional Welding
TITANIUM
  • Commercially pure
  • Alpha-beta phase
Friction Stir Welding vs. Traditional Welding

Unique Characteristics

With arc welding, calculating heat input is critically important when preparing welding procedure specifications (WPS) for the production process. With FSW, the traditional components – current and voltage – are not present, as the heat input is purely mechanical and thereby replaced by force, friction and rotation. As a result, the FSW process forms joints at about 80-90% of the base material’s melting temperature, creating a joint that is nearly always superior to conventional fusion-welded joints.

Ideal Parameters

When using FSW, the following parameters are controlled: downforce, welding speed, the rotational speed of the welding tool and tilting angle. Only these four main parameters need to be mastered, making FSW ideal for mechanized welding. And of these four, the most important variable is downforce, which enables robust control even at higher welding speeds. Greater downforce produces the generation of frictional heat, thus softening the material further and helping to guarantee high quality even where tolerance errors in the materials to be joined may arise.

Friction Stir Welding vs. Traditional Welding
Friction Stir Welding vs. Traditional Welding

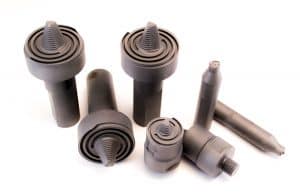

The Right Tools & Design

Optimizing tool geometry to produce more heat or achieve efficient stirring offers two main benefits: improved breaking and mixing of workpieces’ oxide layers and more efficient heat generation, yielding higher welding speeds and enhanced quality. And Mazak MegaStir is the only FSW service provider to design and build advanced instrumented tool holders and tools that support both ferrous and non-ferrous alloys.

Unrivaled Performance for Significant Cost Savings and Increased Production Capacity

Increased welding speed compared to conventional processes (e.g., GMAW, FCAW, GTAW, SAW, etc.)
Compared to multi-pass techniques used with competing technologies, FSW’s single-pass capabilities generate significant cost savings.
Superior refined microstructure that replicates the properties of the base material, providing higher post-weld strength and minimized weld distortion.
